Columbia Flooring System for Ford Transit 148EL DRW - Durable Van Floor Protection for Cargo & Work Vans - Perfect for Delivery, Construction & Commercial Use

Product Description

Note: The Columbia Heated Floor Gen 2 version comes with new features! 5 standard PEX Exits and rear water chase for convenient plumbing line exits and entrances.

Want to be toasty warm even on the coldest winter days in your Ford Transit 148"EL DRW camper van? The Columbia Flooring System - Ford Transit 148"EL DRW is a truly revolutionary camper van heating flooring solution that

The The Columbia Flooring System - Ford Transit 148"EL DRW  combines many elements together into a single, top-of-the-line RV heating solution for your Ford Transit camper:

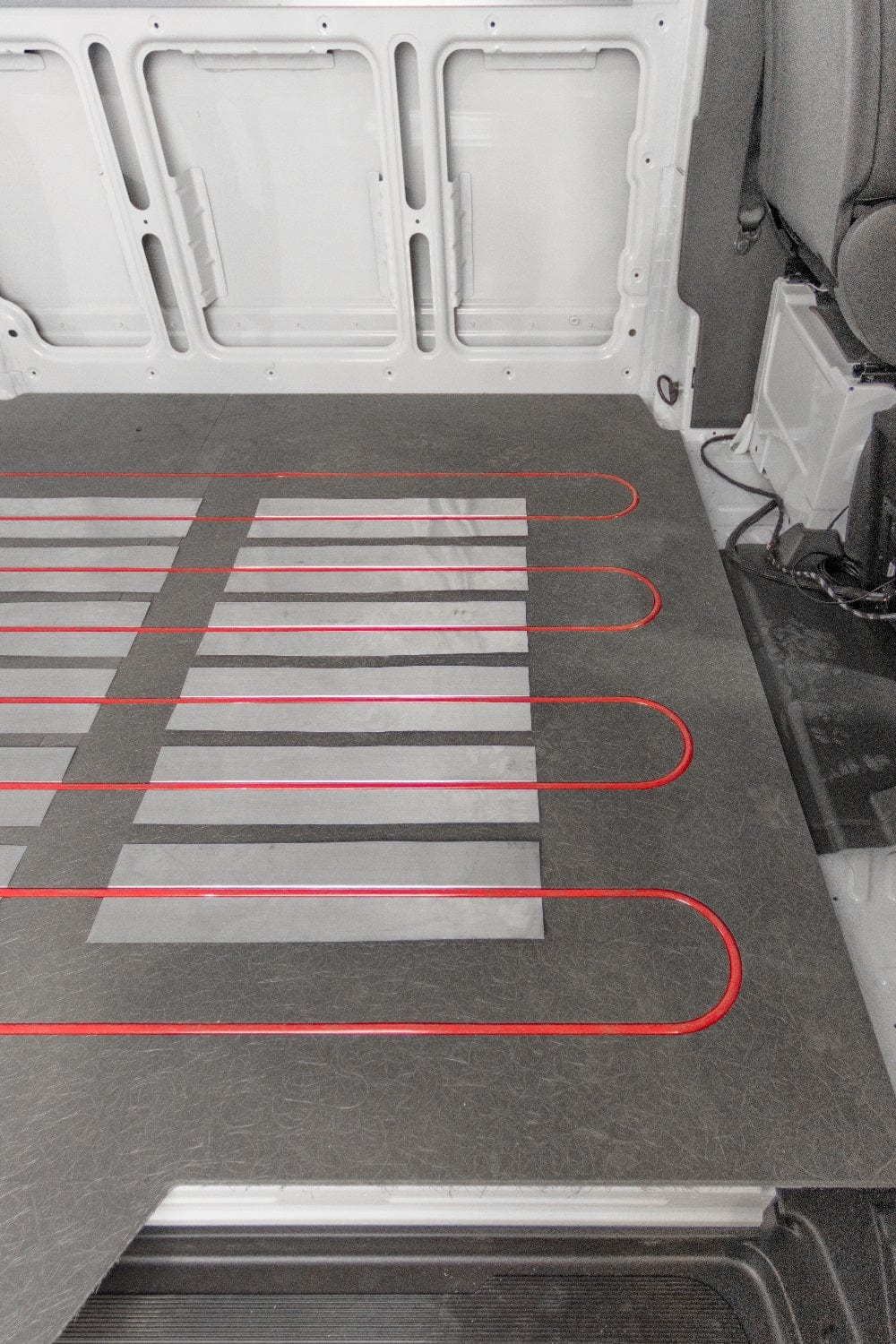

• Subfloor - A dense, rigid subfloor to hold the heat, cut exactly to fit your van model. The subfloor is built from a high-tech composite board made of extremely dense, highly-insulating polyurethane foam reinforced with fiberglass. The composite board is CNC-machined with precise grooves for the PEX tubing and the aluminum heat transfer plates, which retain and distribute the heat throughout the floor. The subfloor assembly is dimensionally stable, and finished with marine plywood to provide a smooth, strong substrate for finish flooring. The top of the plywood is engraved with the tubing pattern so you know where to place fasteners and where to avoid.
• Topfloor - You can choose to finish the RV floor assembly with beautiful, durable RV flooring from 2Tec2 or Lonseal.


Note: Local pickup available in Portland, Oregon. Local installation in Portland, please reach out to us in chat or email. Shipping is quoted at checkout! Subfloors are cut each Monday. Typical manufacturing lead times are 7 - 10 business days for subfloor components. If you choose a topfloor in the menu above, typical lead times are 14-21 business days before shipping or available for pickup. These items are made to order and NOT eligible for cancellation after placing.

Key Features: The Columbia Flooring System - Ford Transit 148"EL DRW

• Fits: Designed to fit 2015+ Ford Transit 148"EL DRW cargo vans
• Compatible with most RV Hydronic Heaters and systems
• AquaHot Hydronic systems recommended
• CNC cut coosa subfloor and plywood layer
• Topfloor(if chosen) is CNC cut to match subfloor sheets

• 5 PEX Exits come standard with plates to cover unused areas
• Rear hot/cold water chases for driver to passenger side plumbing lines(nice!)

We supply the following components:

• PEX tubing
• Adhesive
• Aluminum heat transfer plates
• Plates to cover unused exits
• CNC routed fiberglass-reinforced closed-cell foam subfloor
• CNC-etched 1/4" plywood overlay floor, mapped with tubing layout
• Optionally, CNC-cut 2Tec2 or Lonseal topfloor

We recommend using the Ford Factory Trim pieces with this flooring system to make use of factory mounting locations and edge protection. Other custom options are okay to use, just be sure to have a plan before purchasing or reach out to our team with questions.

Documents: The Columbia Flooring System - Ford Transit 148"EL DRW

Video: The Columbia Flooring System - Ford Transit 148"EL DRW
