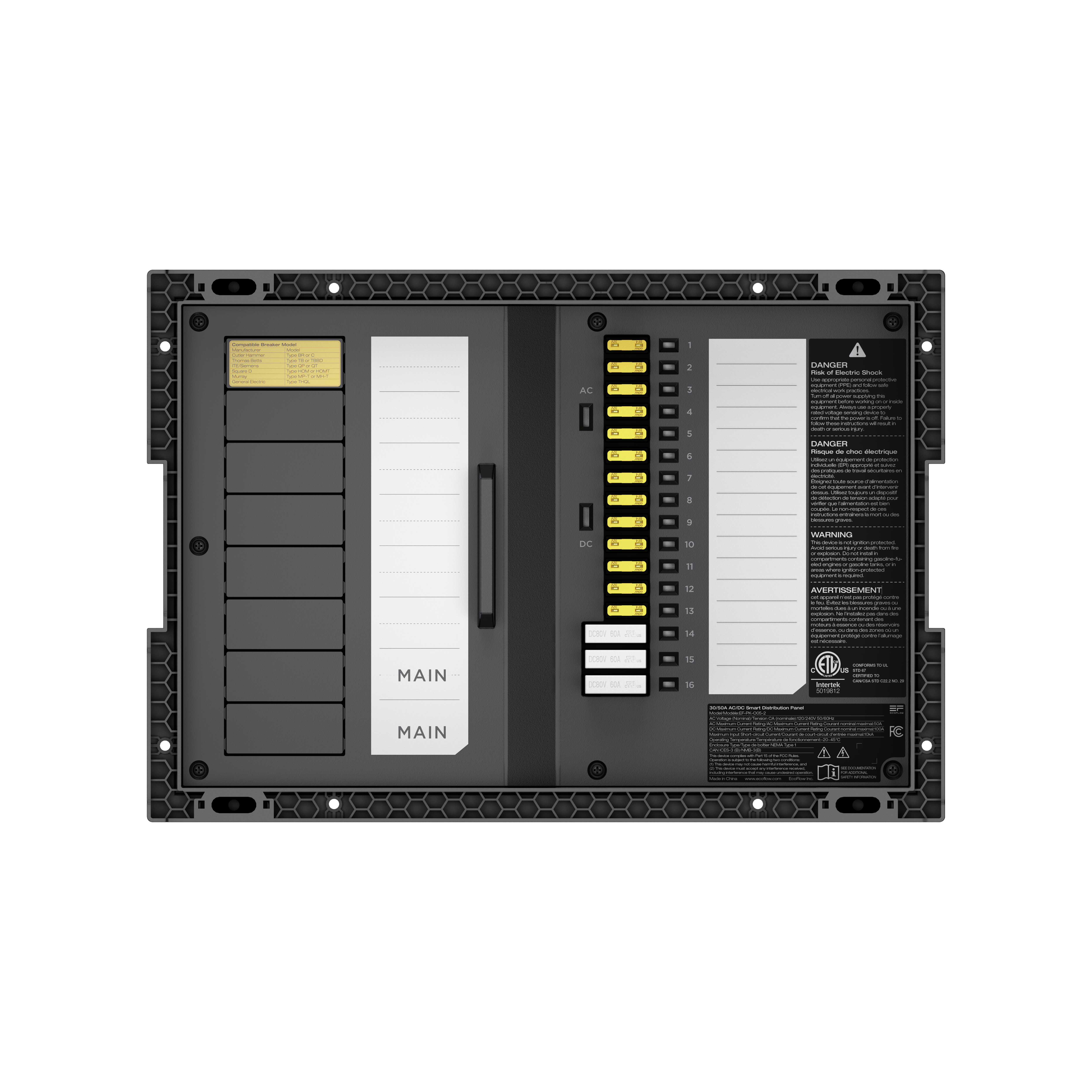

EcoFlow 30A/50A Distribution Panel Gen 2 - Portable Power Distribution Box for RV, Camping & Off-Grid Living | Heavy-Duty Electrical Panel for Solar Generators & Backup Power Systems
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:65498431
Product Description
Introducing the EcoFlow 30A/50A Distribution Panel - Gen 2, a game-changing solution that brings convenience and versatility to your power distribution needs. This innovative panel is designed to streamline the management of AC and DC power, making it the perfect companion for both indoor and outdoor applications.
One of the standout features of the new EcoFlow 30A/50A Distribution Panel - Gen 2 is its ability to accommodate both AC (alternating current) and DC (direct current) power sources and allow up to 240V output when connected to 50A shore power.
This distribution panel can be wired to support just single-phase 120VAC loads, or to support both single-phase 120VAC and split-phase 240VAC loads. It also supports either 12VDC or 24VDC output.
FREE SHIPPING on this item anywhere in the lower 48 US states.
Key Features: EcoFlow 30A/50A Distribution Panel - Gen 2
- Compatible with both EcoFlow 5kVA (Gen 2) Power Hubs and 3.6kVA (Gen 1) Power Hubs
- 120V/240V output capabilities
- 12 AC branch circuits
- 16 controllable DC circuits
- Split phase (L1, L2, N) options
- AC input/output up to 50A
- Safe power distribution
- Easy installation
- Track your energy
- Made in China
Specifications: 30/50Amp AC/DC Smart Distribution Panel - Gen 2
Feed-In type | Split phase (L1, L2, N) |
AC Input | 50A Max. 120V/240V, 60Hz |
AC Output | Max 30A for each branch circuit |
AC Circuits | Max 12 branch circuits |
Maximum Input Short-Circuit Current | 10kA |
DC Input | Max 100A, 13/26V |
DC Output | Max 30A for F1-F13 Circuits Max 50A for F14-F16 |
Number of Circuits | 16 controllable circuits(F1-F16) |
Operating Temperature (C) | –25°C to 45°C (–13°F to 113°F) |
Operating Temperature (F) | –25°C to 70°C (–13°F to 158°F) |
Dimensions | 390x135x270 mm (15.3x5.3x10.6 in.) |
Net Weight (lbs) | 4 kg (8.8 lb) |
Altitude | 9842 ft (3,000 m) |
Enclosure Type | NEMA Type 1 |
